Simplified detection of urban types¶

import geopandas
import libpysal
import matplotlib.pyplot as plt
import momepy
import osmnx
import pandas
from bokeh.io import output_notebook
from bokeh.plotting import show
from clustergram import Clustergram

output_notebook()

place = "Znojmo, Czechia"
local_crs = 5514

geopandas.tools.geocode(place).explore()

buildings = osmnx.features_from_place(place, tags={"building": True})
buildings.head()

buildings.geom_type.value_counts()

buildings = buildings[buildings.geom_type == "Polygon"].reset_index(drop=True)

buildings = buildings[["geometry"]].to_crs(local_crs)
buildings.head()

osm_graph = osmnx.graph_from_place(place, network_type="drive")
osm_graph = osmnx.projection.project_graph(osm_graph, to_crs=local_crs)
streets = osmnx.graph_to_gdfs(
    osmnx.convert.to_undirected(osm_graph),
    nodes=False,
    edges=True,
    node_geometry=False,
    fill_edge_geometry=True,
).reset_index(drop=True)
streets.head()

streets = momepy.remove_false_nodes(streets)
streets = streets[["geometry"]]

streets.head()

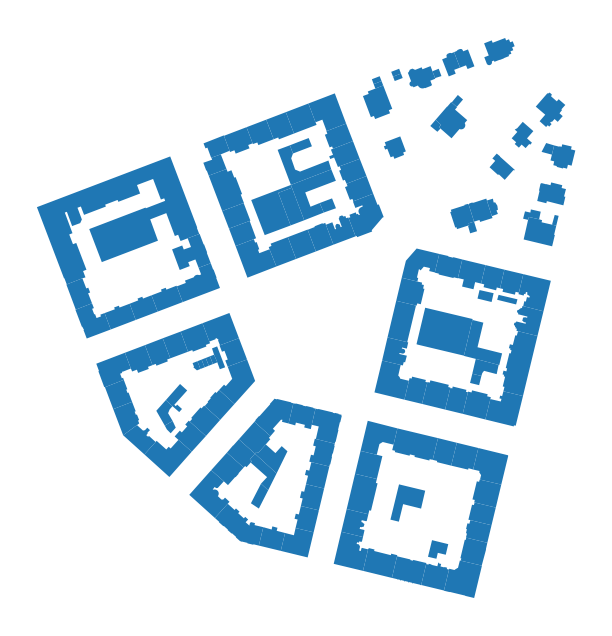

limit = momepy.buffered_limit(buildings, "adaptive")

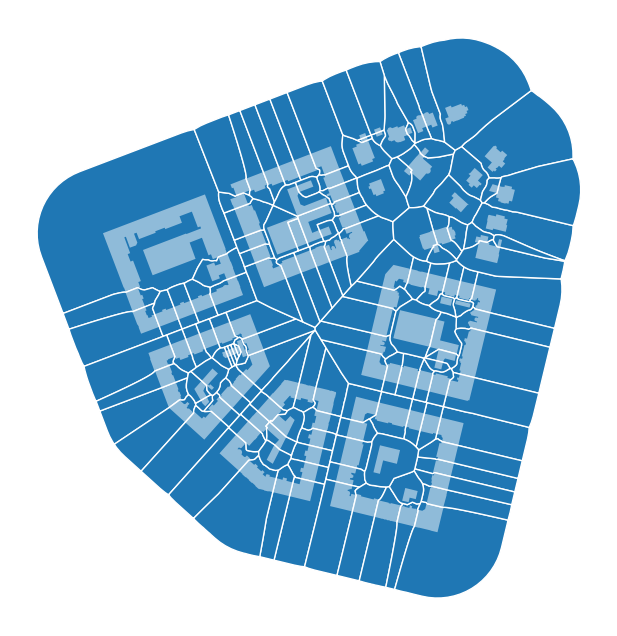

tessellation = momepy.morphological_tessellation(buildings, clip=limit)

collapsed, _ = momepy.verify_tessellation(tessellation, buildings)

buildings = buildings.drop(collapsed)
limit = momepy.buffered_limit(buildings, "adaptive")
tessellation = momepy.morphological_tessellation(buildings, clip=limit)

tessellation.shape[0] == buildings.shape[0]

buildings["street_index"] = momepy.get_nearest_street(
    buildings, streets, max_distance=100
)
buildings

tessellation["street_index"] = buildings["street_index"]

buildings["building_area"] = buildings.area
tessellation["tess_area"] = tessellation.area
streets["length"] = streets.length

buildings["eri"] = momepy.equivalent_rectangular_index(buildings)
buildings["elongation"] = momepy.elongation(buildings)
tessellation["convexity"] = momepy.convexity(tessellation)
streets["linearity"] = momepy.linearity(streets)

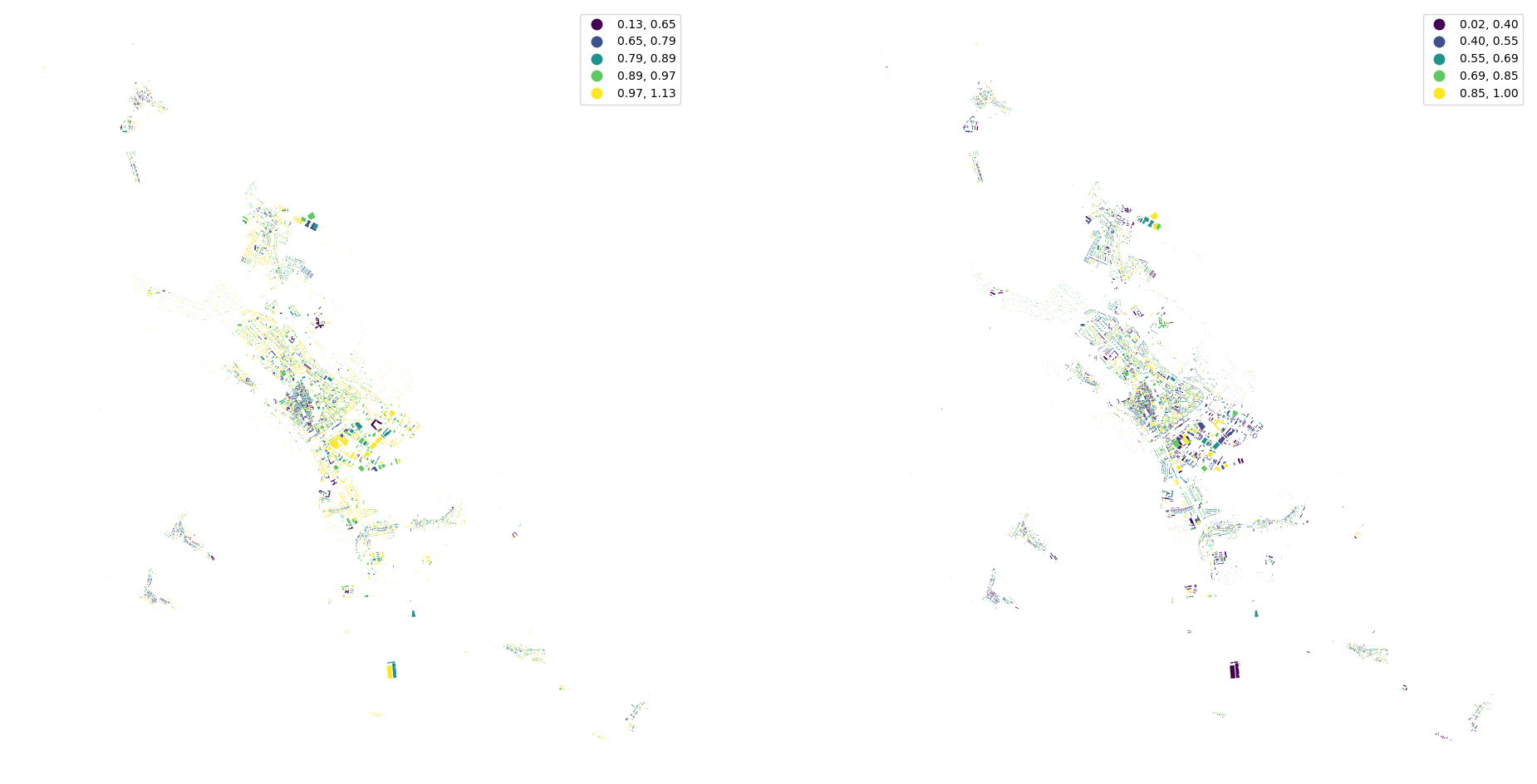

fig, ax = plt.subplots(1, 2, figsize=(24, 12))

buildings.plot("eri", ax=ax[0], scheme="natural_breaks", legend=True)
buildings.plot("elongation", ax=ax[1], scheme="natural_breaks", legend=True)

ax[0].set_axis_off()
ax[1].set_axis_off()

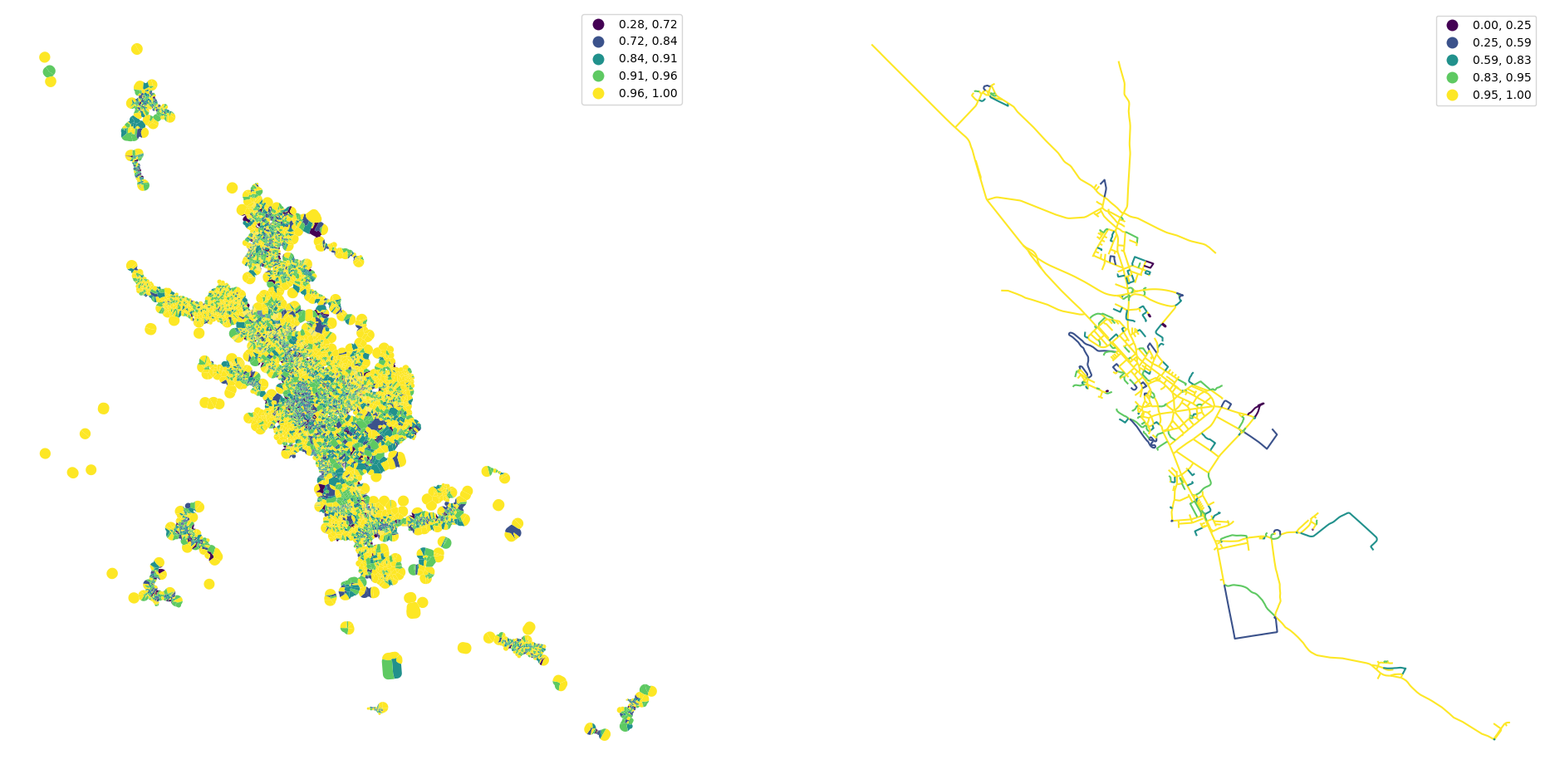

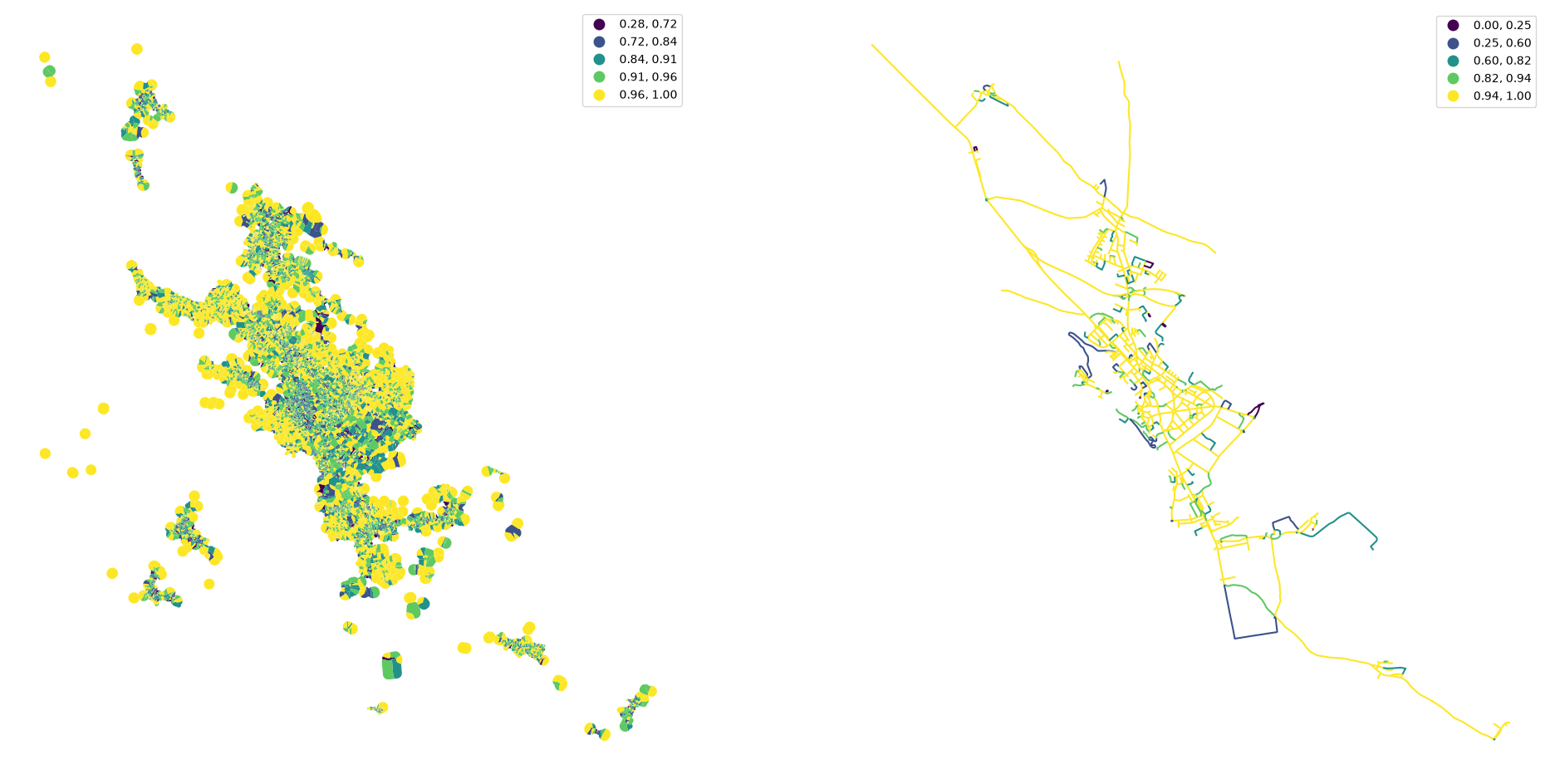

fig, ax = plt.subplots(1, 2, figsize=(24, 12))

tessellation.plot("convexity", ax=ax[0], scheme="natural_breaks", legend=True)
streets.plot("linearity", ax=ax[1], scheme="natural_breaks", legend=True)

ax[0].set_axis_off()
ax[1].set_axis_off()

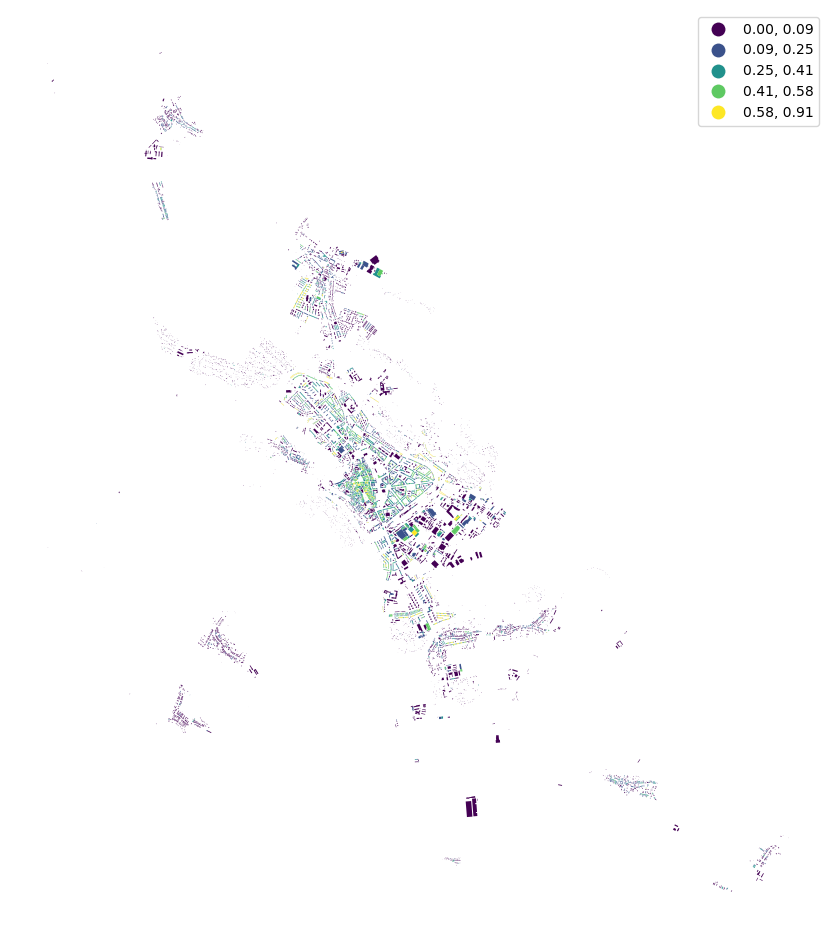

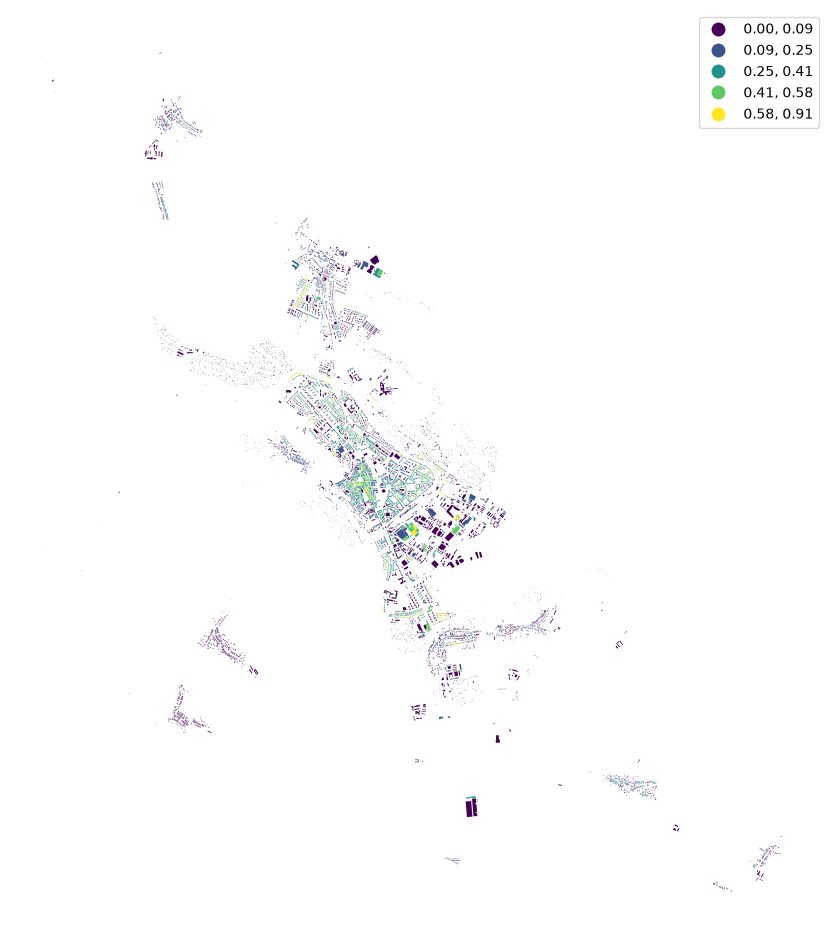

buildings["shared_walls"] = momepy.shared_walls(buildings) / buildings.length
buildings.plot(
    "shared_walls", figsize=(12, 12), scheme="natural_breaks", legend=True
).set_axis_off()

queen_1 = libpysal.graph.Graph.build_contiguity(tessellation, rook=False)

tessellation["neighbors"] = momepy.neighbors(
    tessellation, queen_1, weighted=True
)
tessellation["covered_area"] = queen_1.describe(tessellation.area)["sum"]
buildings["neighbor_distance"] = momepy.neighbor_distance(buildings, queen_1)

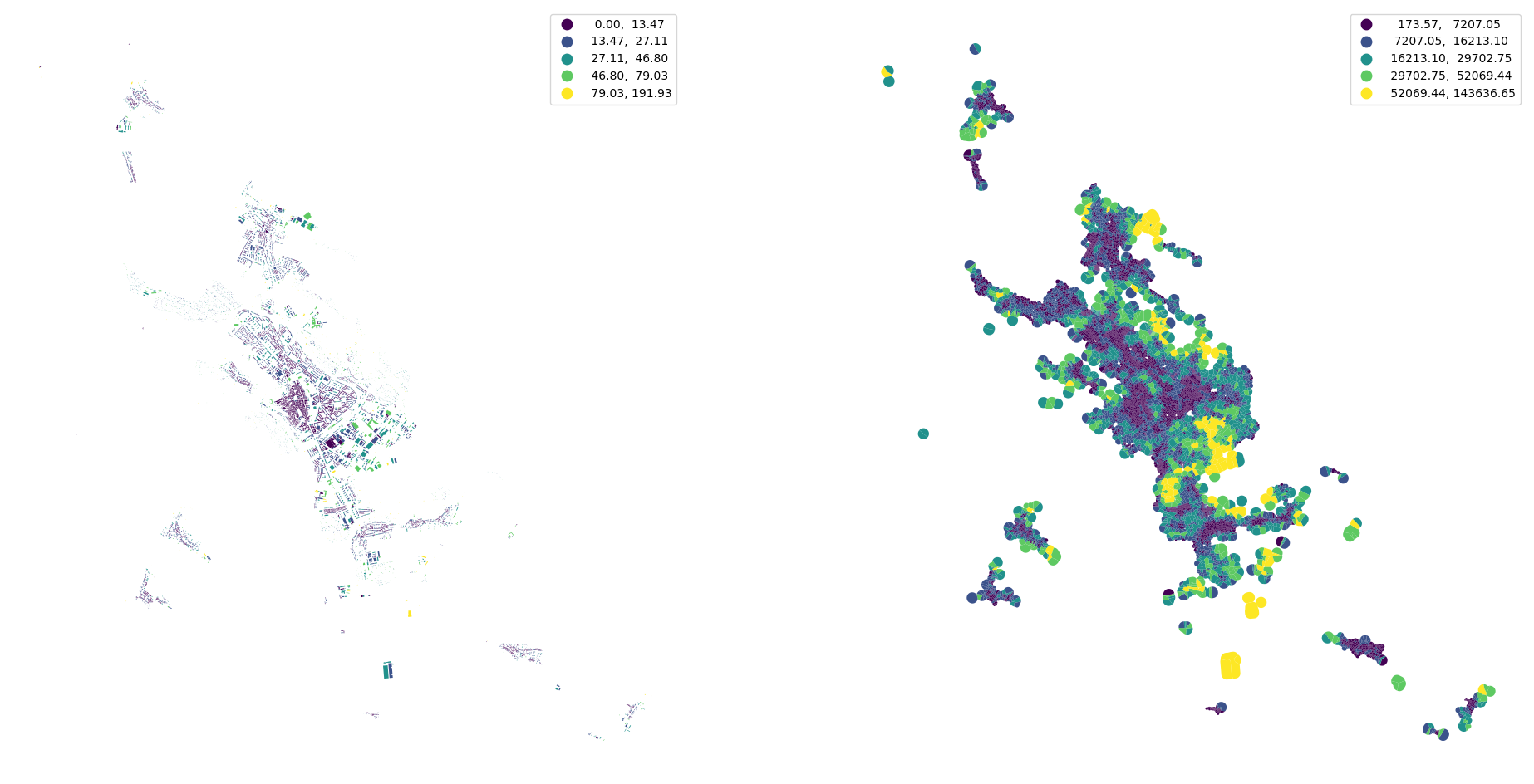

fig, ax = plt.subplots(1, 2, figsize=(24, 12))

buildings.plot(
    "neighbor_distance", ax=ax[0], scheme="natural_breaks", legend=True
)
tessellation.plot(
    "covered_area", ax=ax[1], scheme="natural_breaks", legend=True
)

ax[0].set_axis_off()
ax[1].set_axis_off()

queen_3 = queen_1.higher_order(3)
buildings_q1 = libpysal.graph.Graph.build_contiguity(buildings, rook=False)

buildings["interbuilding_distance"] = momepy.mean_interbuilding_distance(
    buildings, queen_1, queen_3
)
buildings["adjacency"] = momepy.building_adjacency(buildings_q1, queen_3)

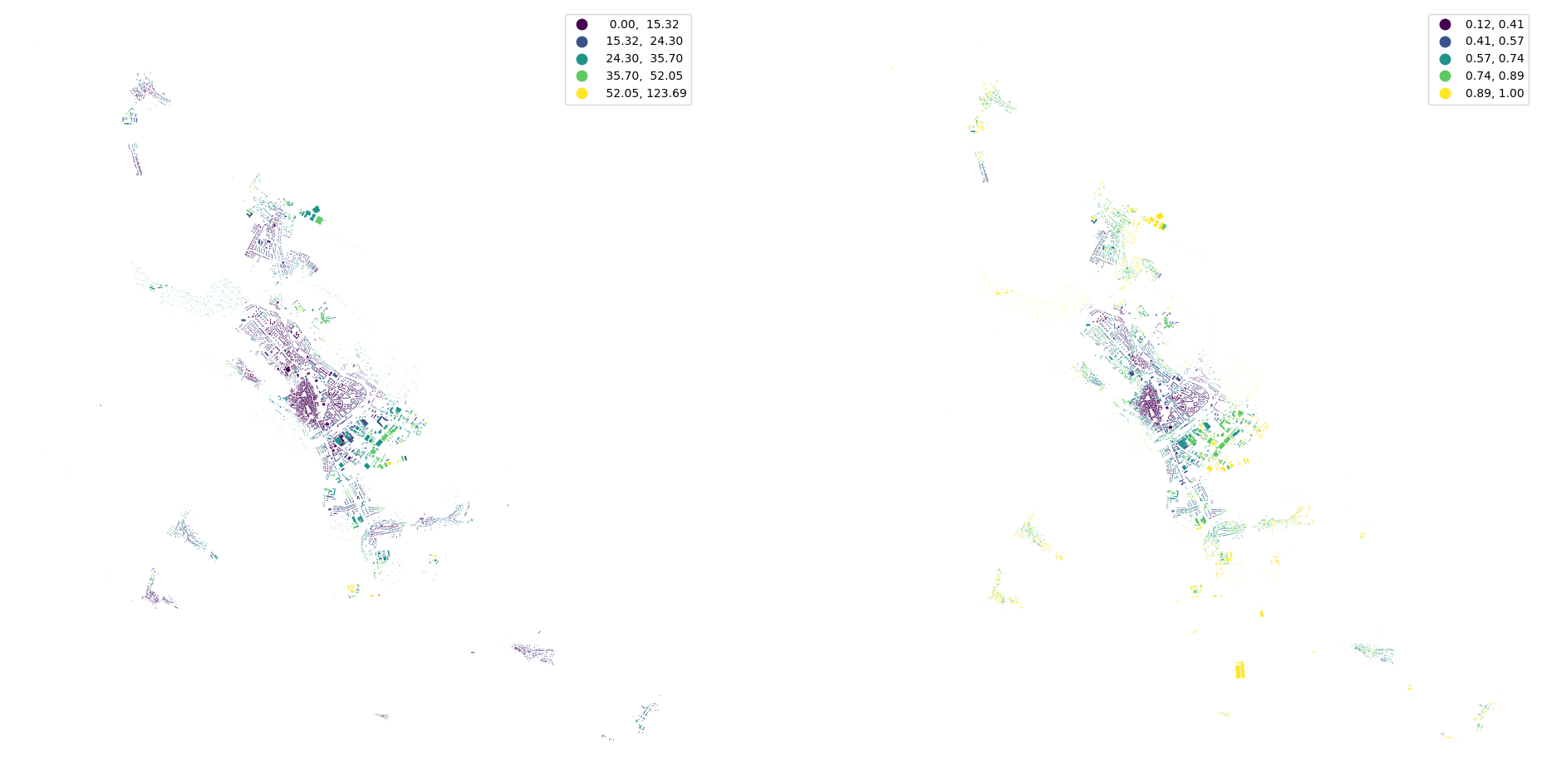

fig, ax = plt.subplots(1, 2, figsize=(24, 12))

buildings.plot(
    "interbuilding_distance", ax=ax[0], scheme="natural_breaks", legend=True
)
buildings.plot("adjacency", ax=ax[1], scheme="natural_breaks", legend=True)

ax[0].set_axis_off()
ax[1].set_axis_off()

profile = momepy.street_profile(streets, buildings)
streets[profile.columns] = profile

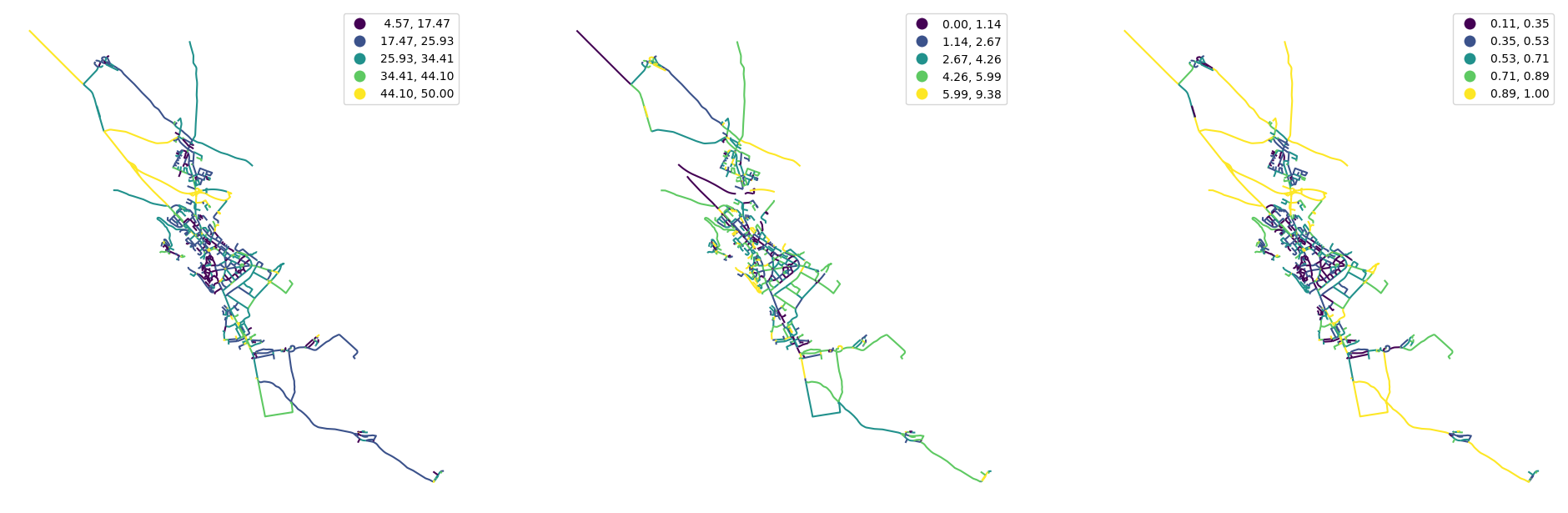

fig, ax = plt.subplots(1, 3, figsize=(24, 12))

streets.plot("width", ax=ax[0], scheme="natural_breaks", legend=True)
streets.plot("width_deviation", ax=ax[1], scheme="natural_breaks", legend=True)
streets.plot("openness", ax=ax[2], scheme="natural_breaks", legend=True)

ax[0].set_axis_off()
ax[1].set_axis_off()
ax[2].set_axis_off()

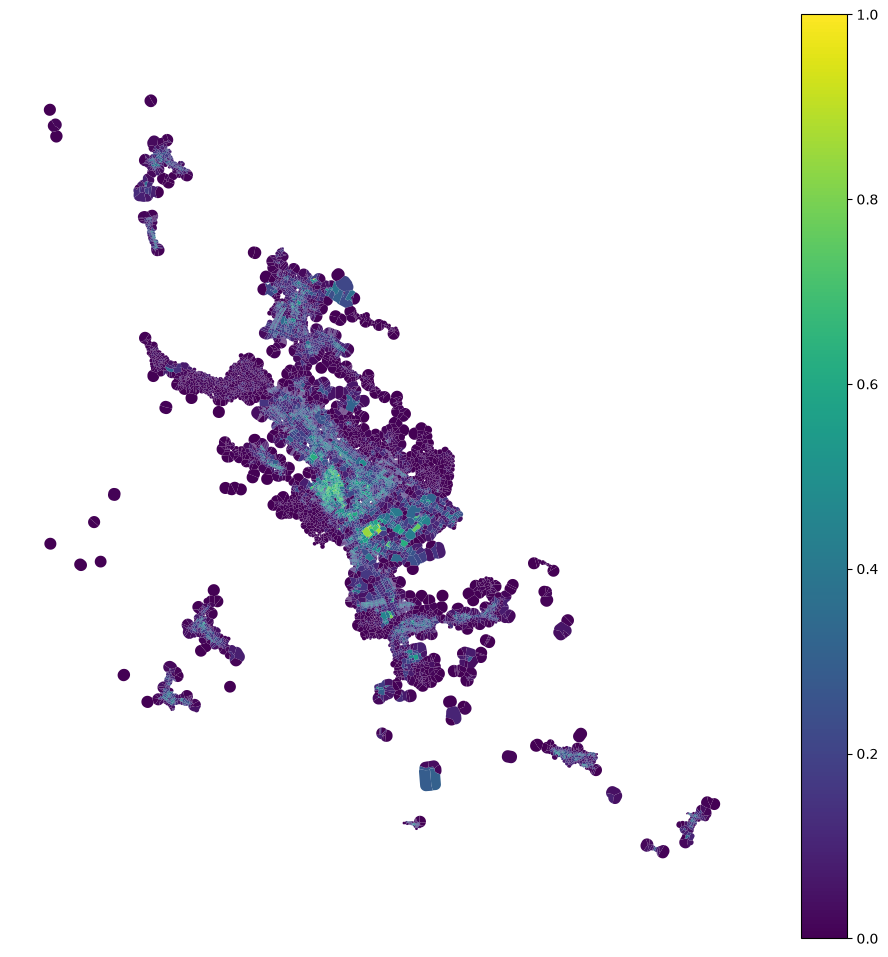

tessellation["car"] = buildings.area / tessellation.area
tessellation.plot(
    "car", figsize=(12, 12), vmin=0, vmax=1, legend=True
).set_axis_off()

graph = momepy.gdf_to_nx(streets)
graph = momepy.node_degree(graph)
graph = momepy.closeness_centrality(graph, radius=400, distance="mm_len")
graph = momepy.meshedness(graph, radius=400, distance="mm_len")
nodes, edges = momepy.nx_to_gdf(graph)

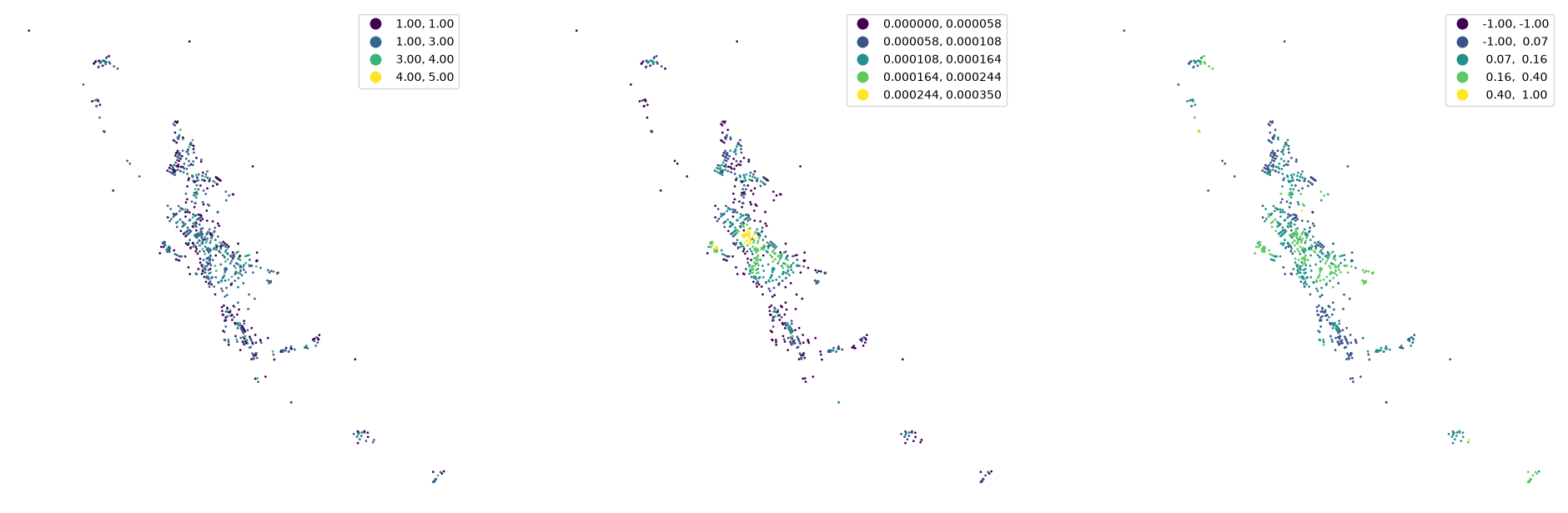

fig, ax = plt.subplots(1, 3, figsize=(24, 12))

nodes.plot(
    "degree", ax=ax[0], scheme="natural_breaks", legend=True, markersize=1
)
nodes.plot(
    "closeness",
    ax=ax[1],
    scheme="natural_breaks",
    legend=True,
    markersize=1,
    legend_kwds={"fmt": "{:.6f}"},
)
nodes.plot(
    "meshedness", ax=ax[2], scheme="natural_breaks", legend=True, markersize=1
)

ax[0].set_axis_off()
ax[1].set_axis_off()
ax[2].set_axis_off()

buildings["edge_index"] = momepy.get_nearest_street(buildings, edges)
buildings["node_index"] = momepy.get_nearest_node(
    buildings, nodes, edges, buildings["edge_index"]
)

tessellation.head()

buildings.head()

tessellation[buildings.columns.drop(["geometry", "street_index"])] = (
    buildings.drop(columns=["geometry", "street_index"])
)
merged = tessellation.merge(
    edges.drop(columns="geometry"),
    left_on="edge_index",
    right_index=True,
    how="left",
)
merged = merged.merge(
    nodes.drop(columns="geometry"),
    left_on="node_index",
    right_index=True,
    how="left",
)

merged.columns

percentiles = []
for column in merged.columns.drop(
    [
        "street_index",
        "node_index",
        "edge_index",
        "nodeID",
        "mm_len",
        "node_start",
        "node_end",
        "geometry",
    ]
):
    perc = momepy.percentile(merged[column], queen_3)
    perc.columns = [f"{column}_" + str(x) for x in perc.columns]
    percentiles.append(perc)

percentiles_joined = pandas.concat(percentiles, axis=1)
percentiles_joined.head()

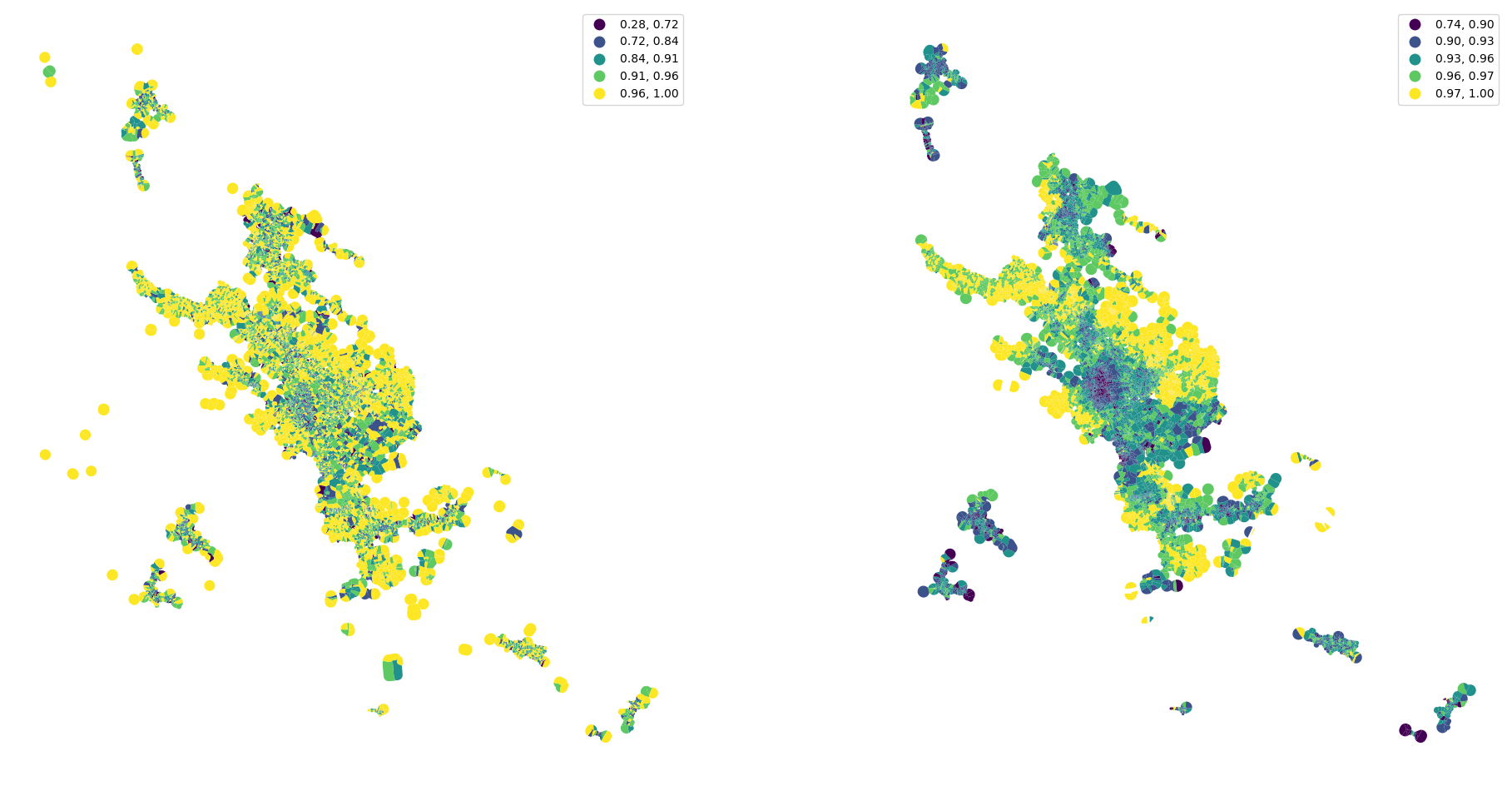

fig, ax = plt.subplots(1, 2, figsize=(24, 12))

tessellation.plot("convexity", ax=ax[0], scheme="natural_breaks", legend=True)
merged.plot(
    percentiles_joined["convexity_50"].values,
    ax=ax[1],
    scheme="natural_breaks",
    legend=True,
)

ax[0].set_axis_off()
ax[1].set_axis_off()

standardized = (
    percentiles_joined - percentiles_joined.mean()
) / percentiles_joined.std()
standardized.head()

cgram = Clustergram(range(1, 12), n_init=10, random_state=42)
cgram.fit(standardized.fillna(0))

show(cgram.bokeh())

cgram.labels.head()

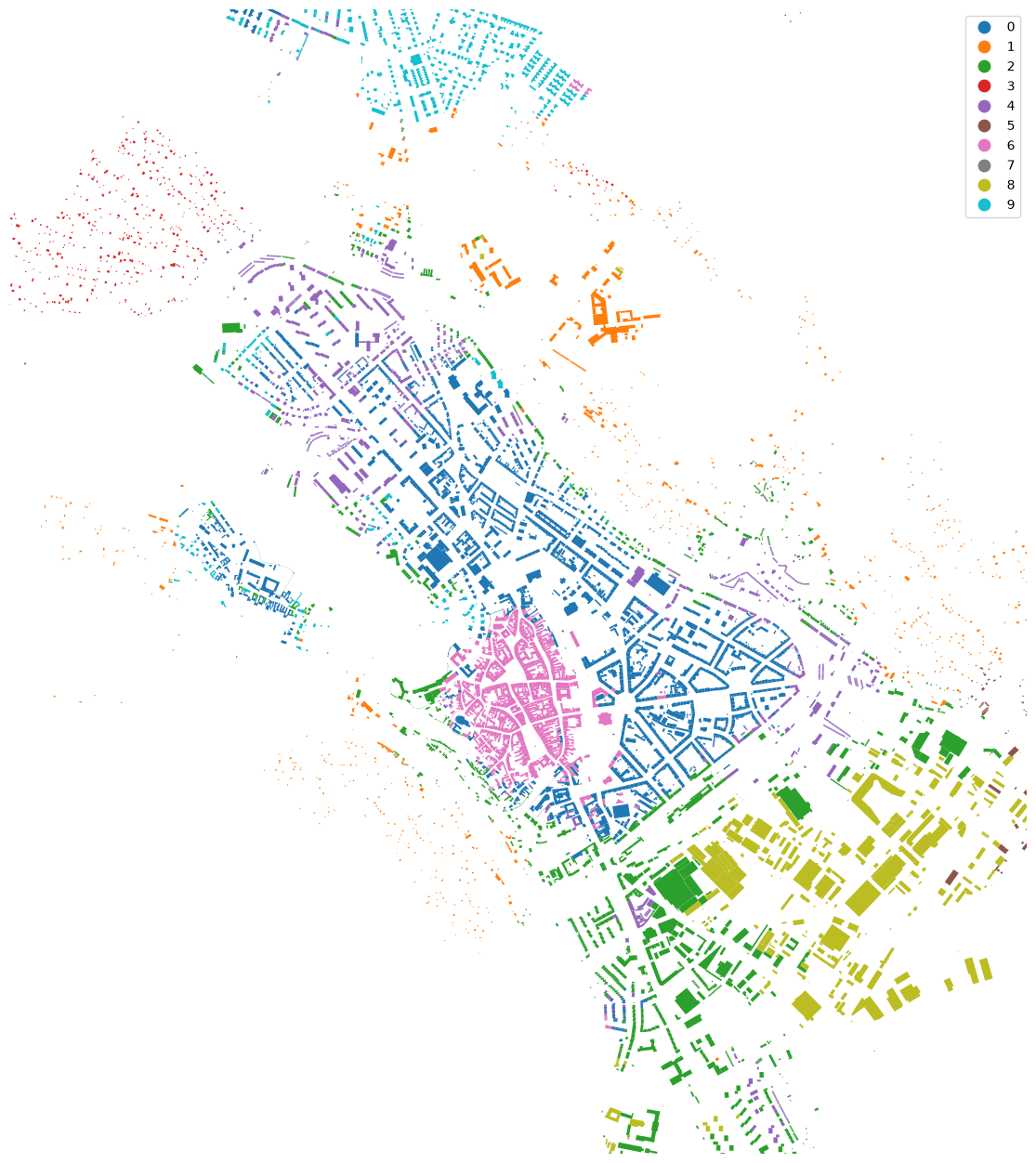

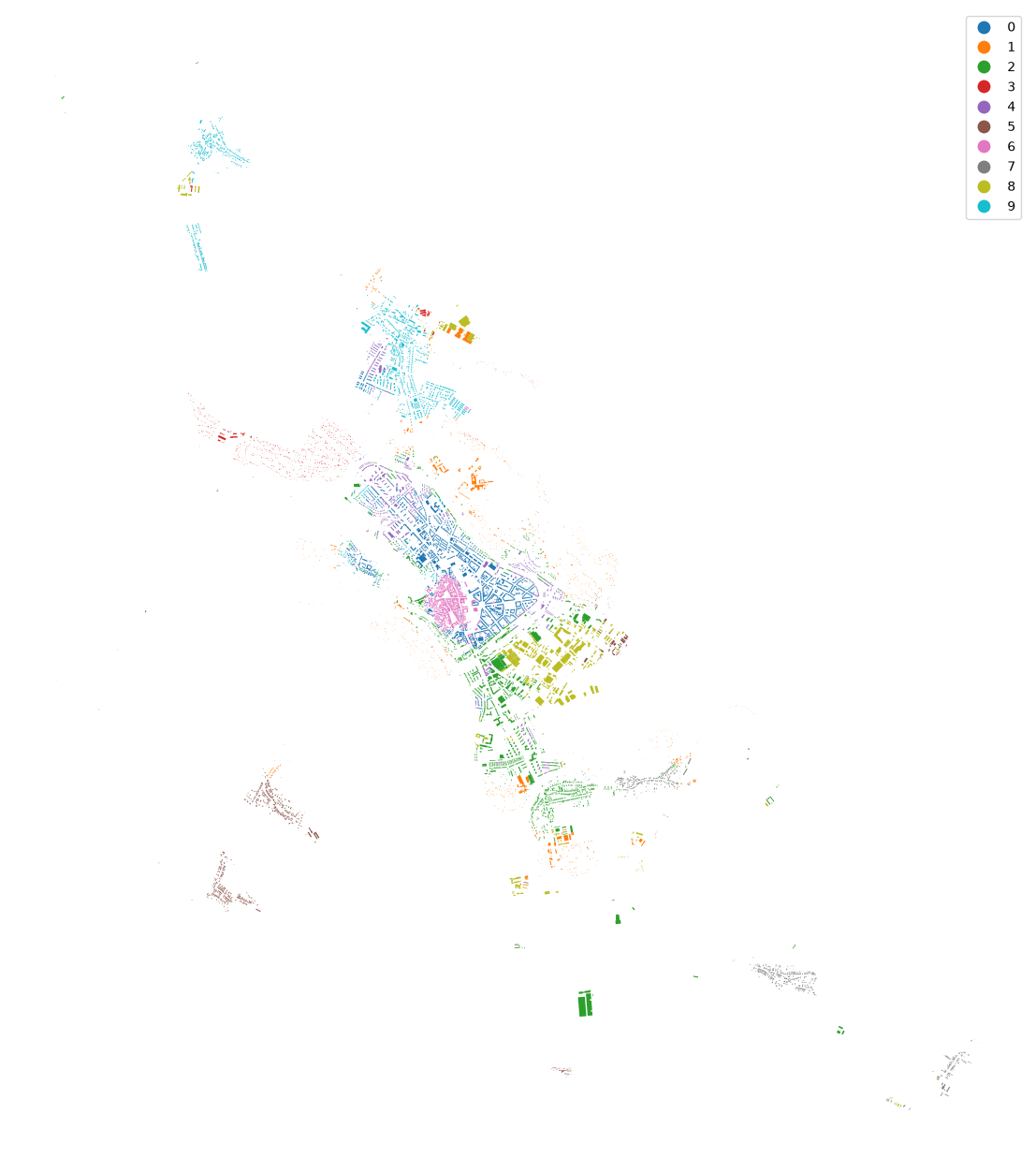

merged["cluster"] = cgram.labels[10].values
buildings["cluster"] = merged["cluster"]
buildings.plot(
    "cluster", categorical=True, figsize=(16, 16), legend=True
).set_axis_off()
